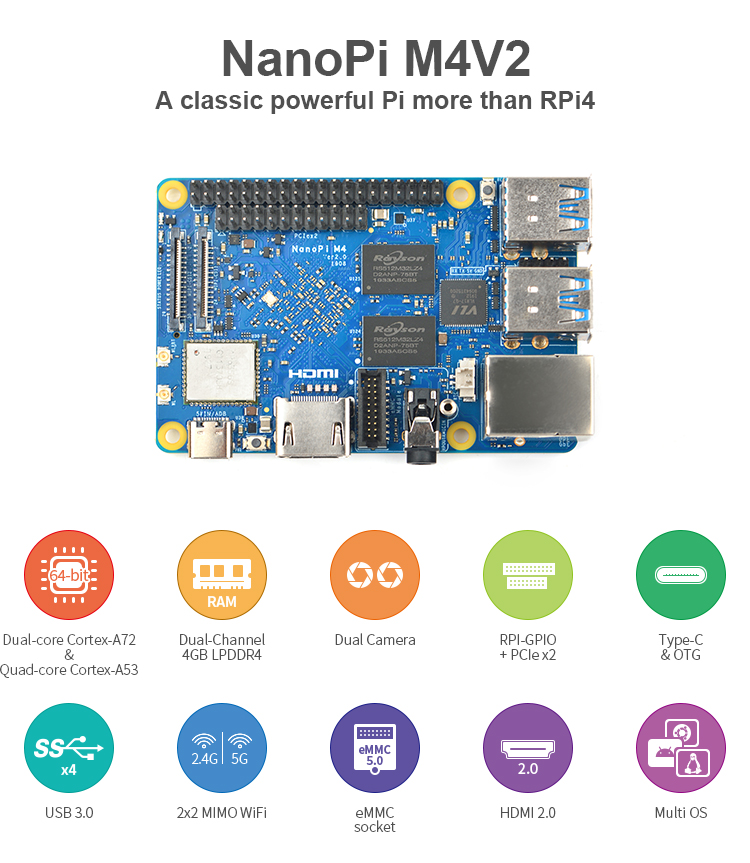

| CPU | Model: Rockchip RK3399 Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53 Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz) |
| GPU | Mali-T864 GPU��supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC |
| VPU | 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc |
| Power Management | RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode |

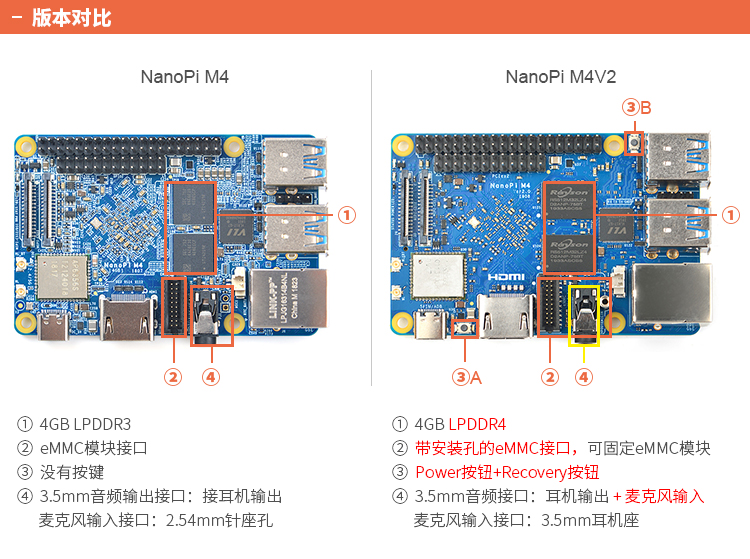

| Memory | RAM: Dual-Channel 4GB LPDDR4 |
| Storage | eMMC: no Onboard eMMC, but has a eMMC socket MicroSD Slot: MicroSD x1 for external storage up to 128GB |
| Connectivity | EEthernet: Native Gbps Ethernet Wi-Fi/BT: 802.11a/b/g/n/ac, Bluetooth 4.1, Wi-Fi and Bluetooth combo module, 2x2 MIMO, dual antenna interface Antenna x2: IPX Connector |
| Audio | Audio Output: 3.5mm Dual channel headphone jack, or HDMI Audio Input: microphone input interface x1 |
| Video Input | one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s��supports simultaneous input of dual camera data |

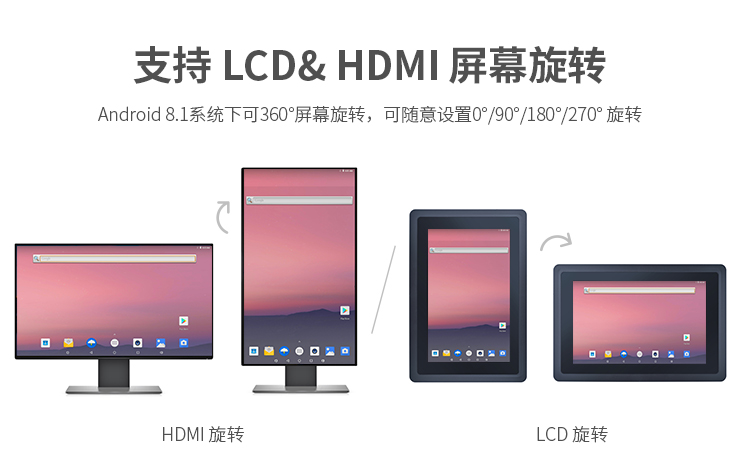

| Video Output | HDMI x1: HDMI 2.0a, supports 4K@60Hz��HDCP 1.4/2.2 4-Lane MIPI-DSI x1 |
| USB | USB 3.0 x4: USB 3.0 Type-A ports USB Type-C x1: Supports USB2.0 OTG and Power input USB Host x2 (included in GPIO2 2.54mm pitch pin header) |

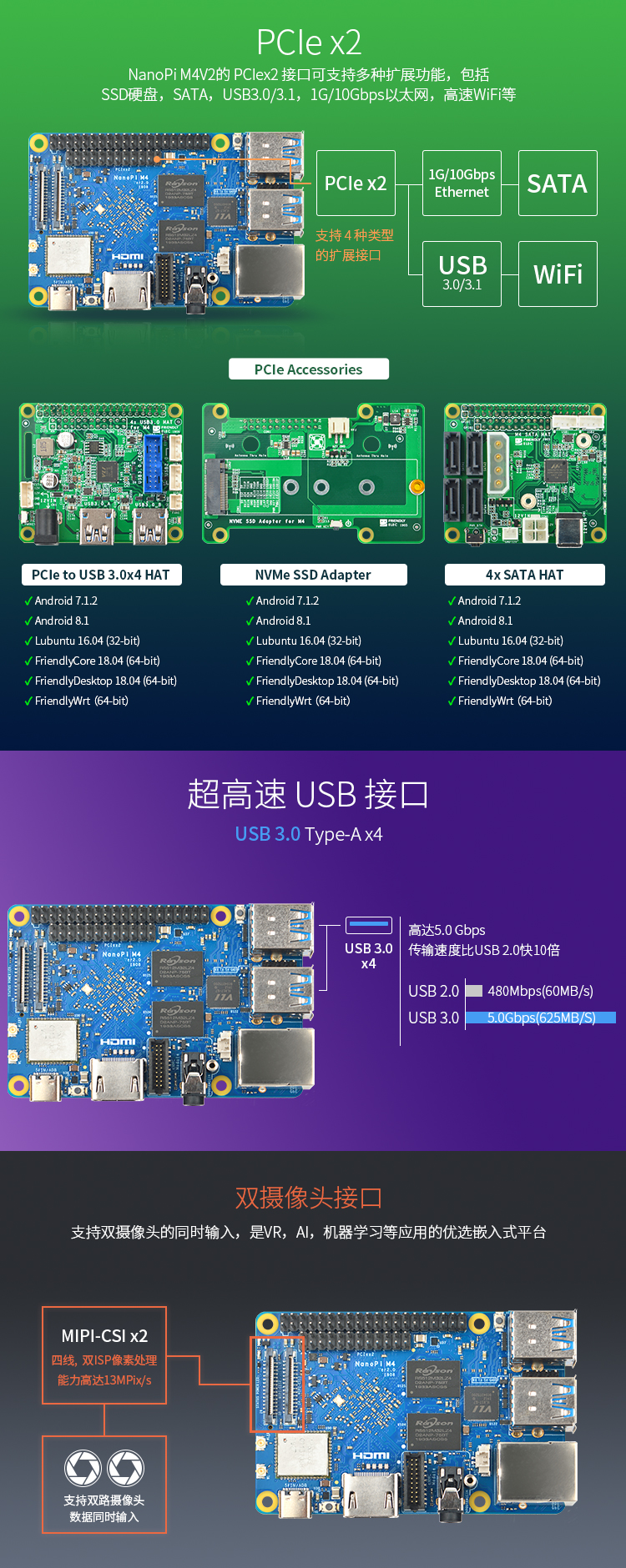

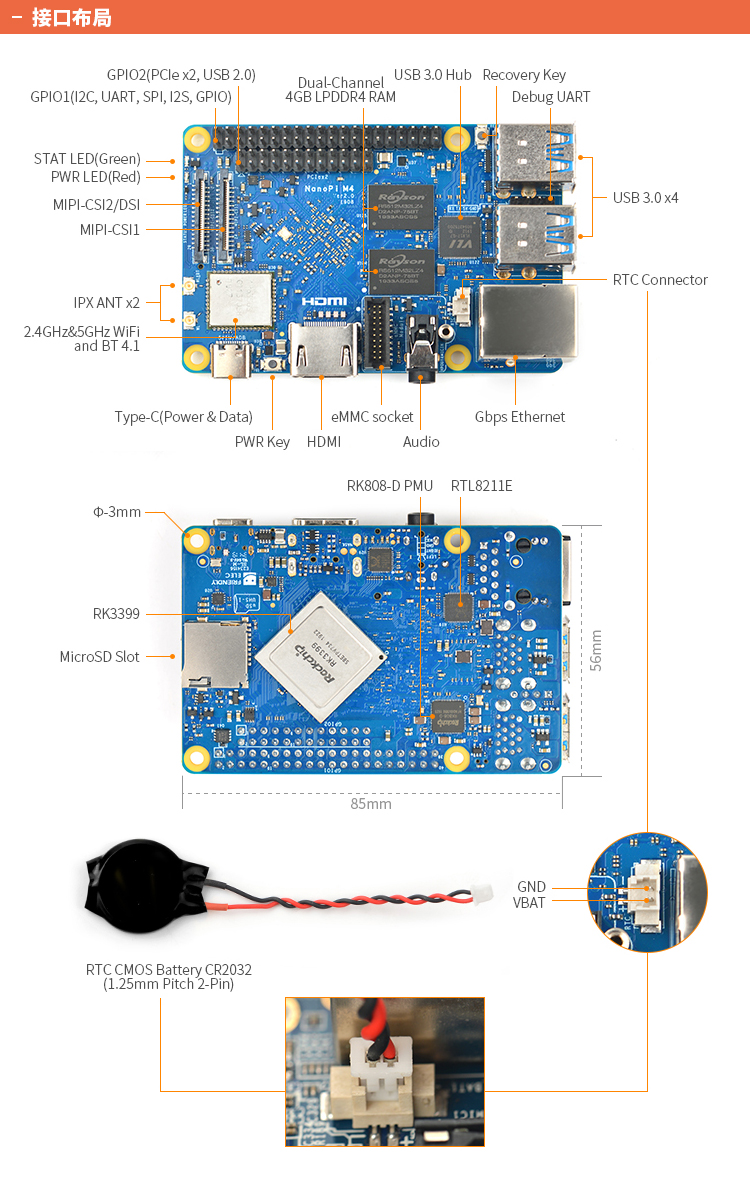

| Pin-header | GPIO1: 40pin, 2.54mm pitch pin-header 3x3V/1.8V I2C, up to 1x3V UART, 1x3V SPI, 1xSPDIF_TX, up to 8x3V GPIOs, 1x1.8V 8 channels I2S GPIO2: 24pin, 2.54mm pitch pin-header 2 independent native USB 2.0 Host interfaces, PCIe x2, PWM x1, PowerKey Serial Debug Port: 2.54mm pitch 4-pin-header, 3V level, 1500000bps |
| User Key | PowerKey*1 Recovery Key*1 |
| LED | Power LED(Red) x1 GPIO Controlled LED(Green) x1 |
| Others | RTC: 2 Pin 1.27/1.25mm RTC battery input connector Working Temperature: -20�� to 70�� |
| Power | DC 5V/3A |

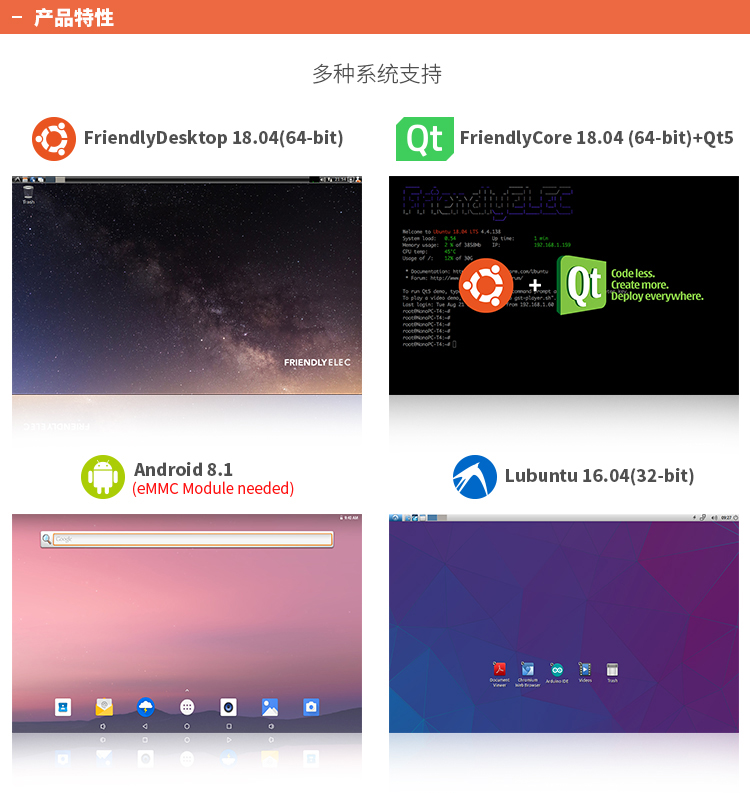

| OS Support | Android 8.1 Lubuntu 16.04 (32-bit) FriendlyCore 18.04 (64-bit) FriendlyDesktop 18.04 (64-bit) |
| BSP version | Linux-4.4-LTS U-boot-2014.10 |
| PCB | 8 Layer |
| Dimension | 85*56mm |
| Weight | 50.62g |
|
