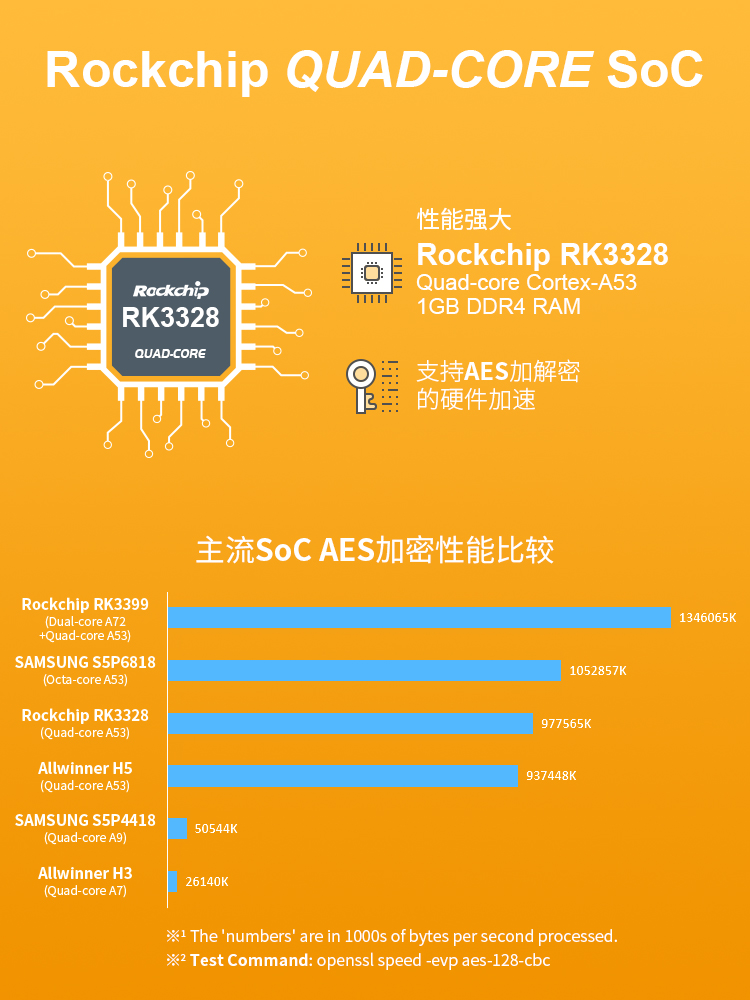

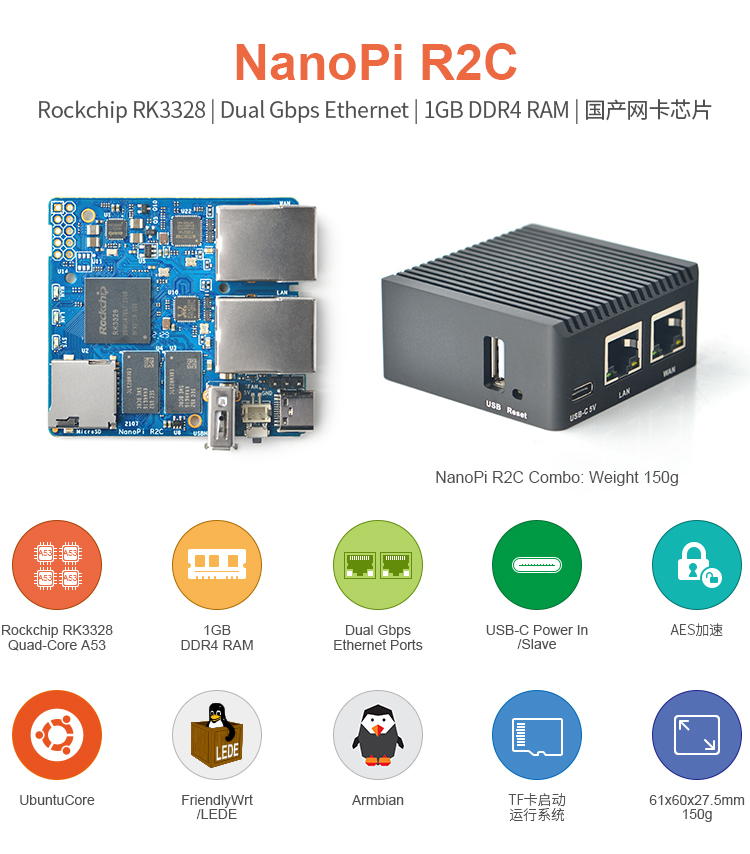

CPU Model: Rockchip RK3328
Number of Cores: Quad-Core Cortex-A53
Frequency: 4 x Cortex-A53 Up to 1.4GHz
Memory RAM: 1GB DDR4
Storage MicroSD Slot: MicroSD x1 for external storage up to 128GB

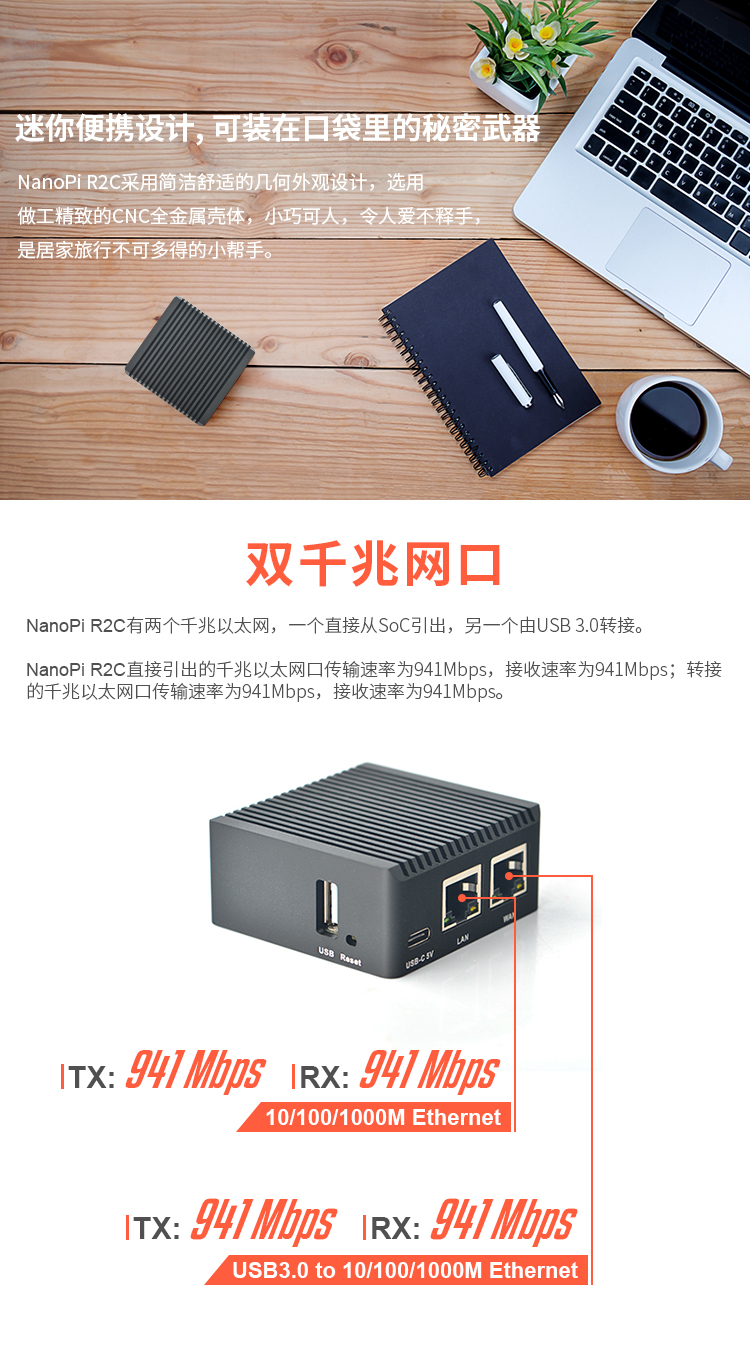

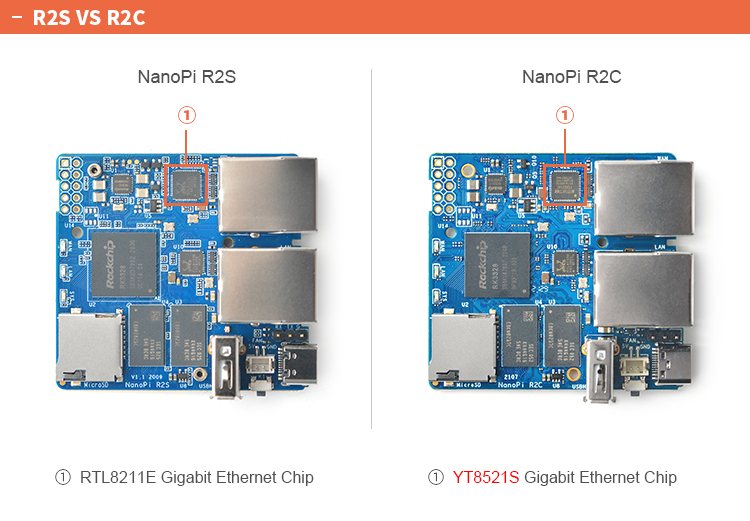

Connectivity Ethernet: Gbps Ethernet x1,YT8521S chip
USB 3.0 to Gbps Ethernet x1
USB USB 2.0 Host x1: USB Type A
MicroUSB x1: Power input(5V/2A) and Slave
Pin-header Serial Debug Port x1: 2.54mm pitch 3pin-header(3.3V TTL)
LED SYS LED(Red) x1
WAN LED(Green) x1
LAN LED(Green) x1
Key User Key x1
Working Temperature 0�� to 80��
Power DC 5V/2A

OS Support FriendlyWrt 19.07-snapshot (64-bit)
FriendlyCore Focal Lite (Base on Ubuntu 20.04)

PCB 6 Layer
Weight 76.38g��With Case)
Dimension 60x60x29.5 mm
