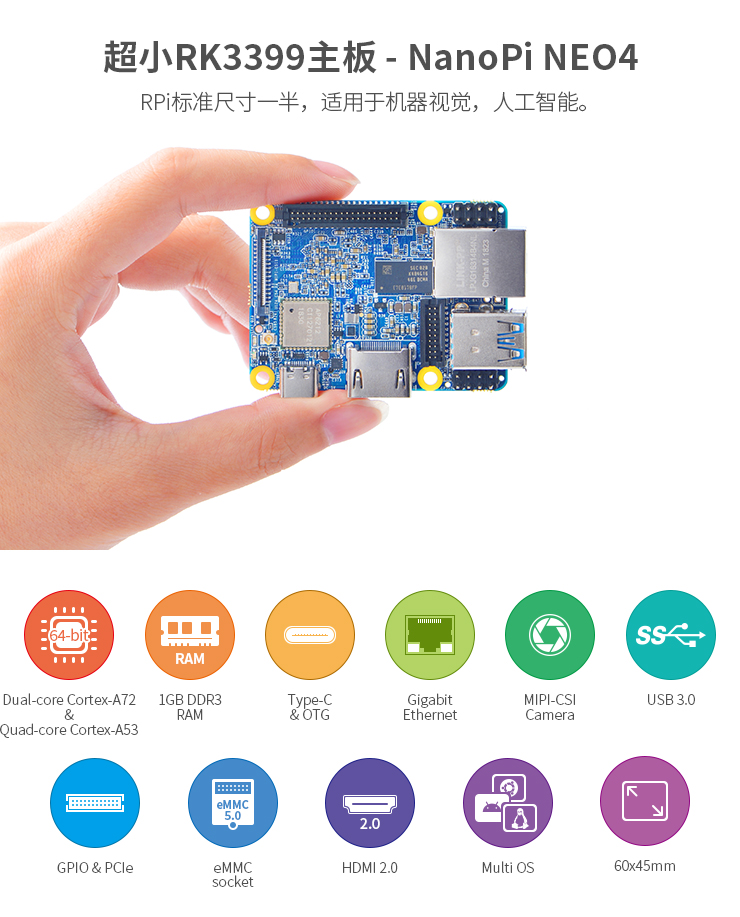

CPU Model: Rockchip RK3399
Number of Cores: 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53
Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
GPU Mali-T864 GPU��supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC
VPU 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
PMU RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, solfware power-down, RTC wake-up, system sleep mode
Memory 1GB DDR3-1866
Storage eMMC: no Onboard eMMC, but has a eMMC socket
MicroSD Slot: MicroSD*1 for external storage up to 128GB
Connectivity Ethernet: Native Gbps Ethernet
WiFi: 802.11 b/g/n, Bluetooth 4.0 combo module

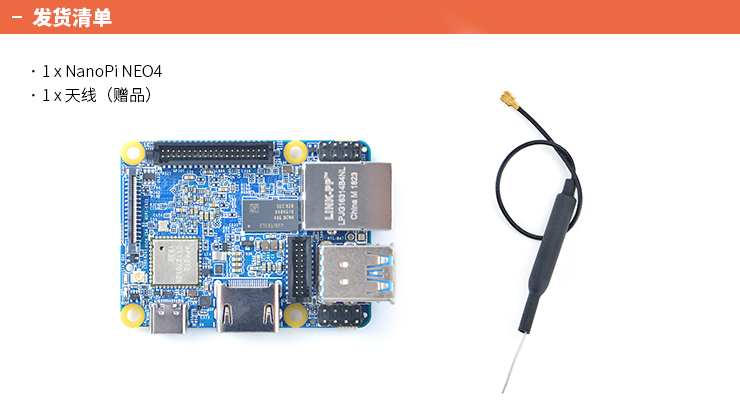

Antenna*1: IPX Connector
Audio Audio Output: HDMI

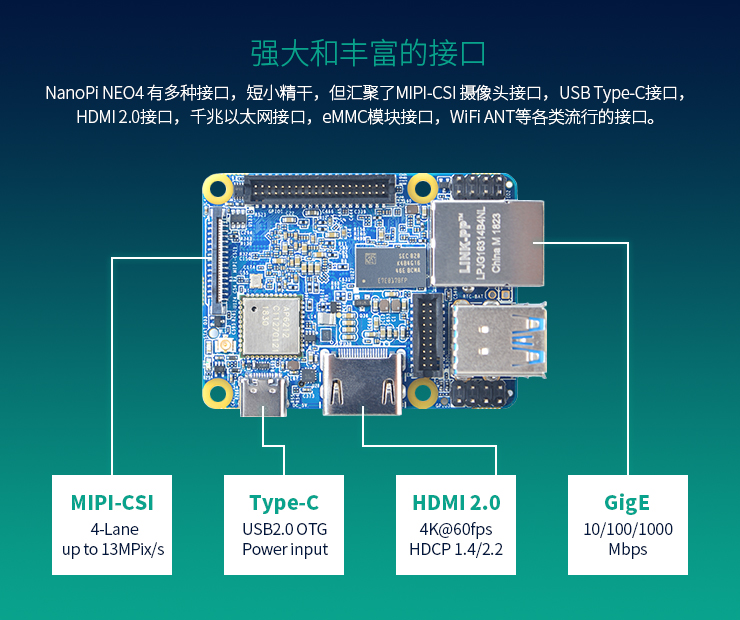

Video Input one 4-Lane MIPI-CSI, up to 13MPix/s
Video Output HDMI*1: HDMI 2.0a, supports 4K@60Hz��HDCP 1.4/2.2

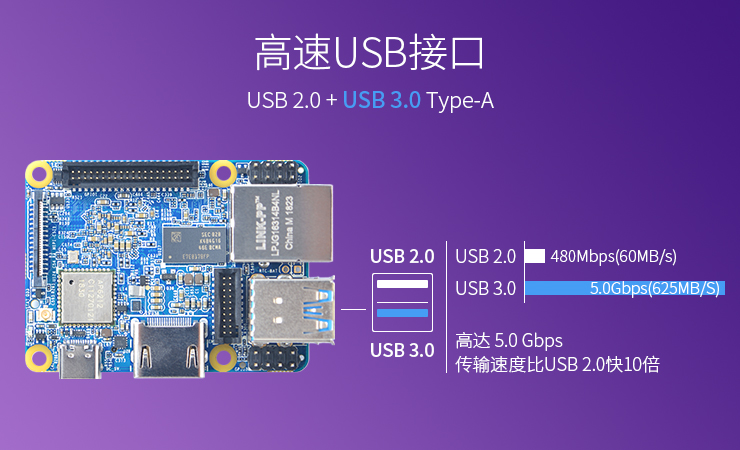

USB USB 3.0*1: USB 3.0 Type-A ports
USB Type-C*1: Supports USB2.0 OTG and Power input
USB 2.0*2: USB 2.0 Host, one is Type-A, the other is 2.54mm header
Pin-header

GPIO1: 40pin
2 X 3V I2C, 1x 3V UART/SPI, 1 x SPDIF_TX, up to 8 x 3V GPIOs

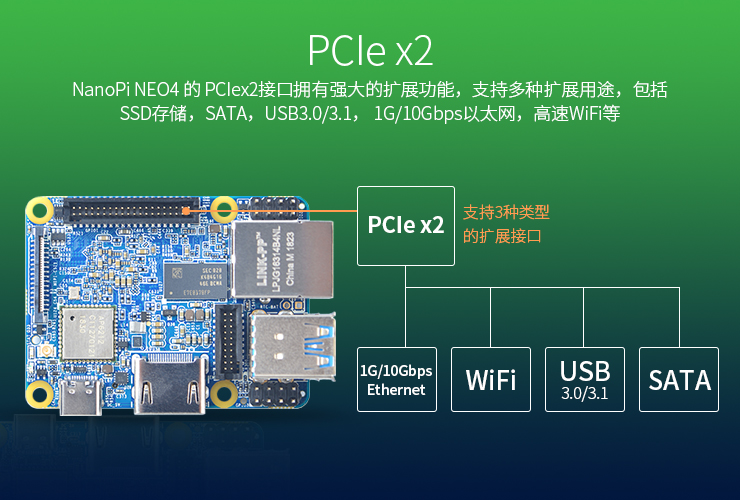

PCIe x2
PWM x1, PowerKey

GPIO2:
1 x 1.8V 8ch-I2S

GPIO3:
debug uart, 3V level, 1500000bps
USB 2.0 x1

LED Power LED(Red)*1
GPIO Controlled LED(Green)*1
Others RTC Battery: 2 Pin 2.54mm pitch through-hole pad
Working Temperature: -20�� to 70��
Power DC 5V/3A

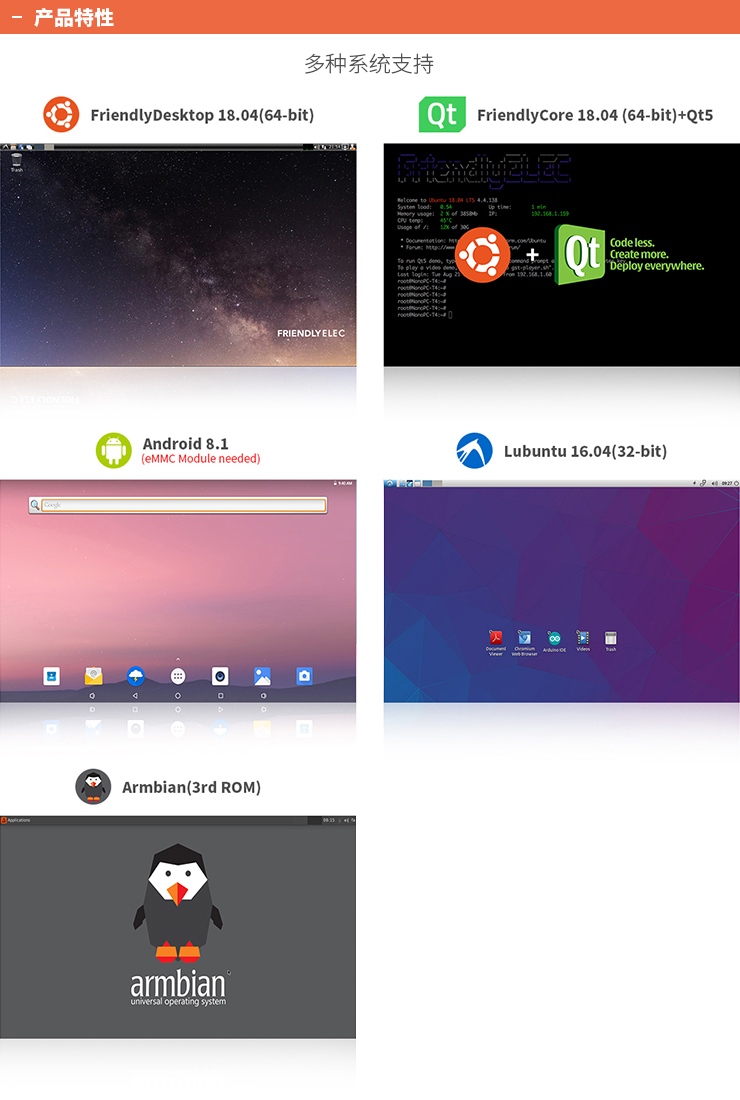

OS Support Android 7.1.2 (eMMC Module required)
Android 8.1 (eMMC Module required)
Lubuntu 16.04 (32-bit)
FriendlyCore 18.04 (64-bit)
FriendlyDesktop 18.04 (64-bit)
Armbian (3rd)
Kernel version Linux-4.4-LTS
U-boot-2014.10
PCB 8 Layer

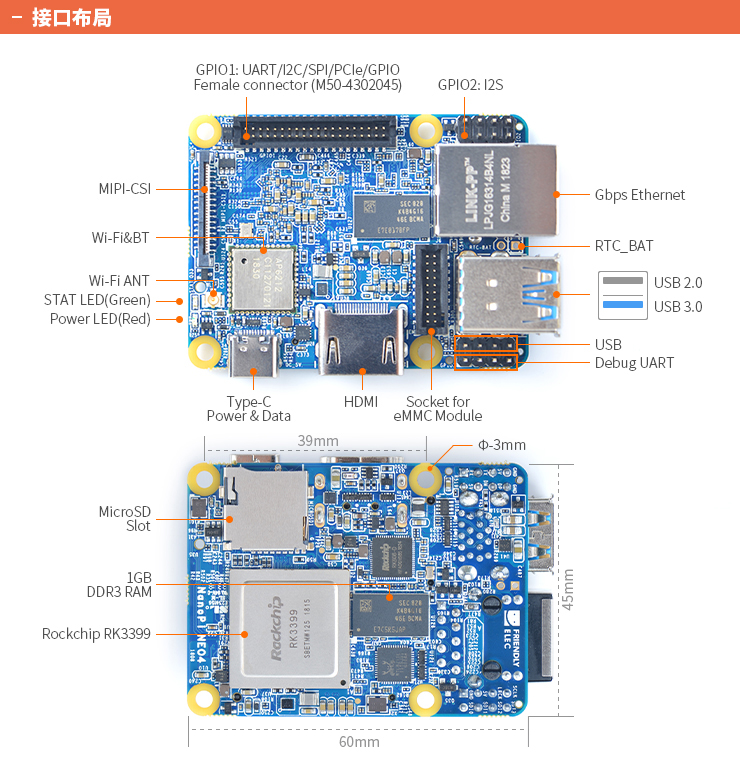

Dimension 60*45mm
Weight 30.25g
