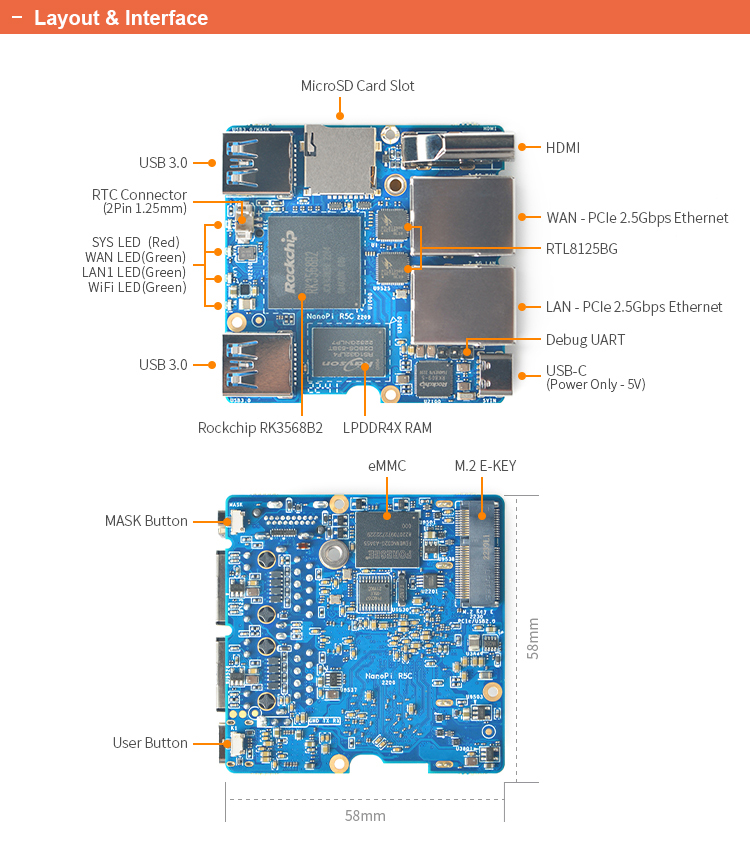

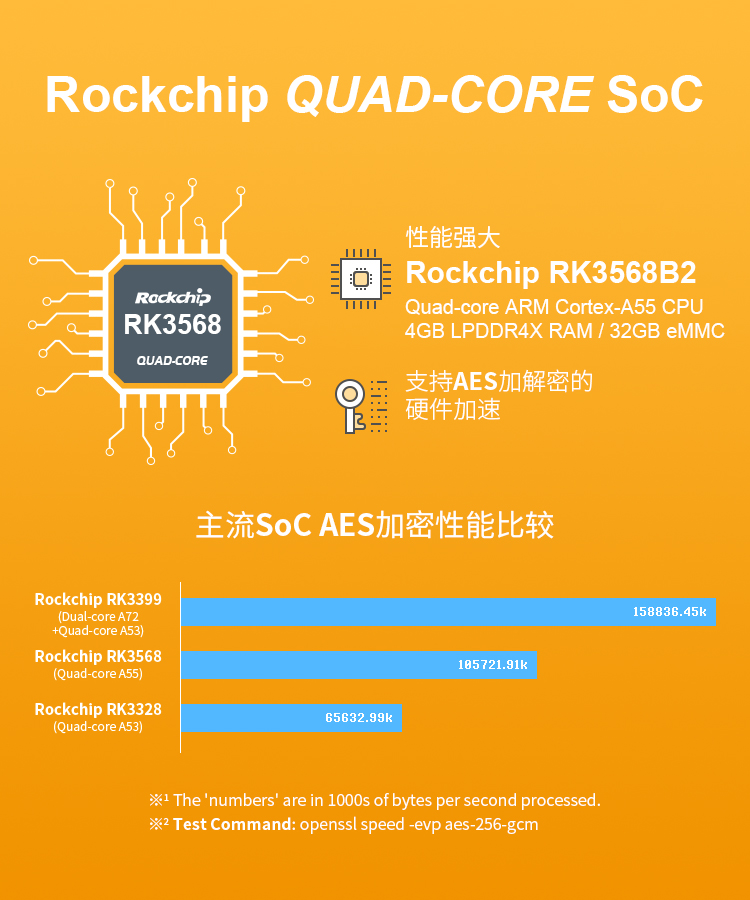

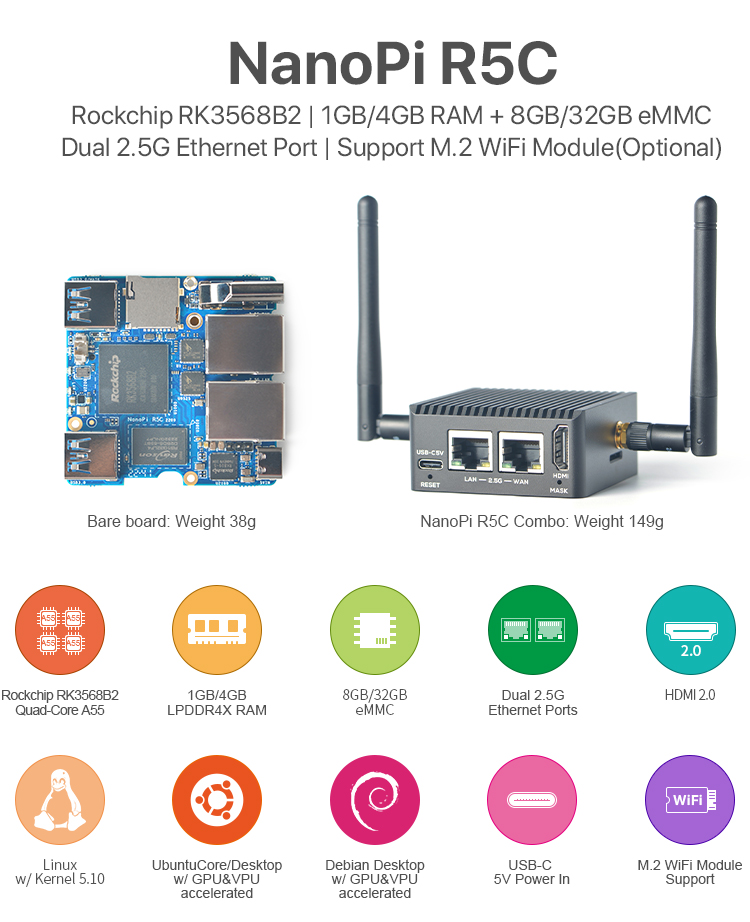

CPU Model: Rockchip RK3568B2
Number of Cores: Quad-core ARM Cortex-A55
Frequency: 4 x Cortex-A55 up to 2.0GHz
GPU Mali-G52 1-Core-2EE,supports OpenGL ES 1.1, 2.0, and 3.2, Vulkan 1.0 and 1.1, OpenCL 2.0 Full Profile
VPU 4KP60 H.265/H.264/VP9 video decoder, 1080P60 H.264/H.265 video encoder
NPU Support 0.8T
Memory RAM: 1GB/4GB LPDDR4X
Storage MicroSD Slot x1: support UHS-I
Flash: 8GB/32GB eMMC

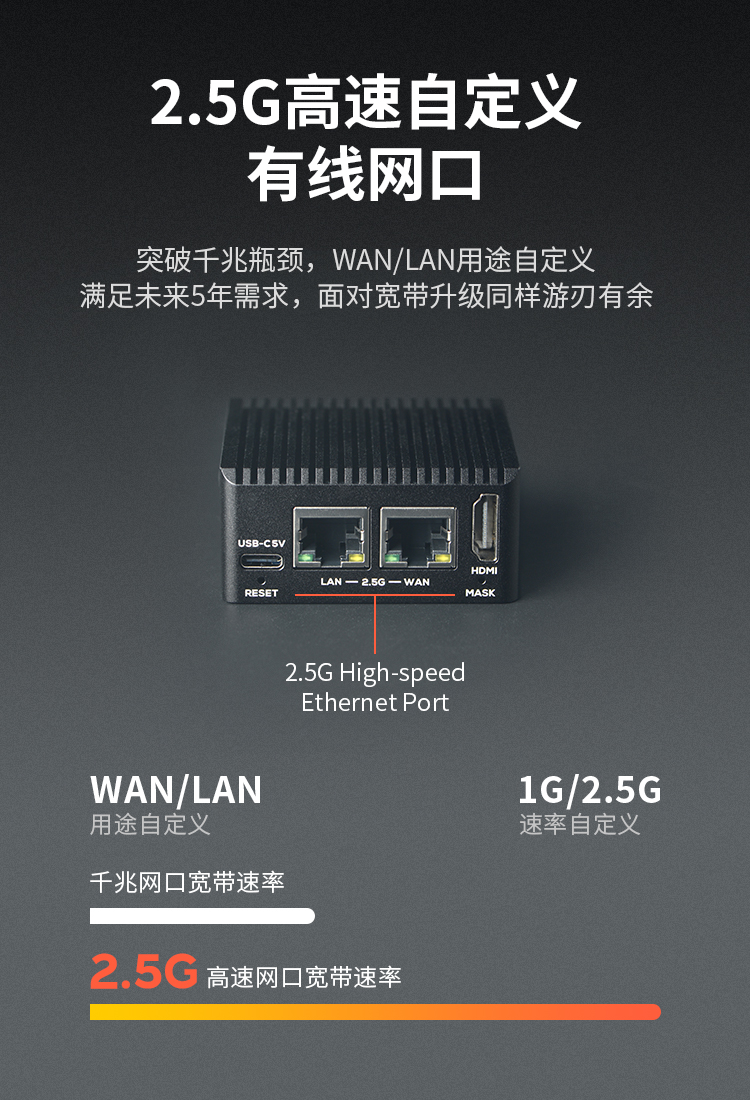

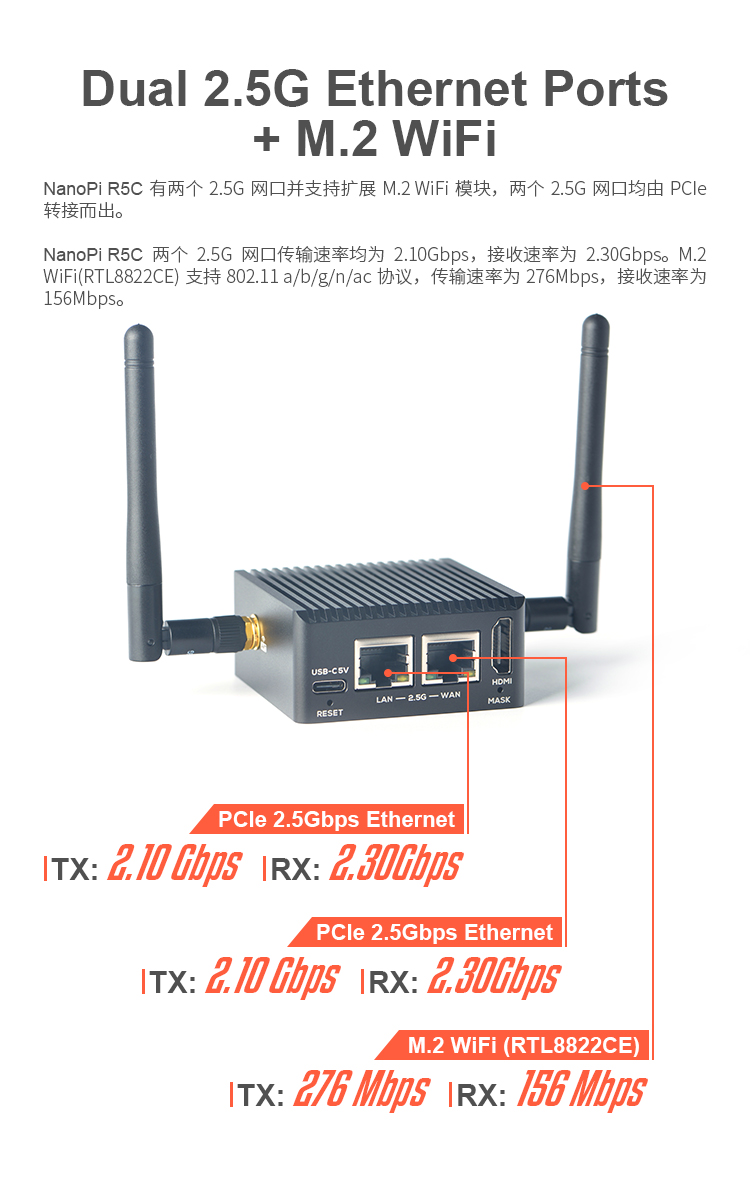

Connectivity Ethernet: PCIe 2.5G Ethernet Ethernet x2,  RTL8125BG chip

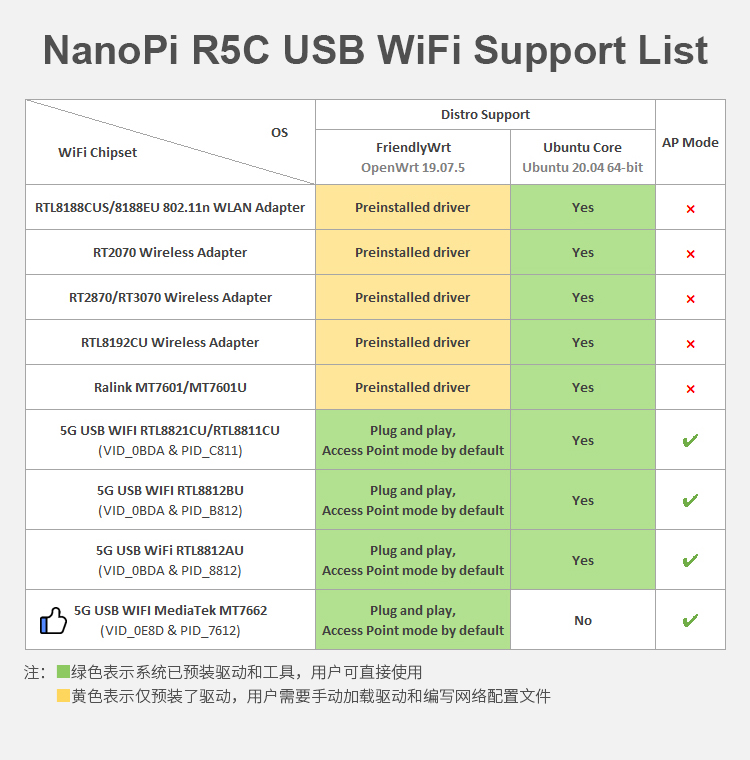

M.2 E-Key x1: PCIe2.1 x1, USB 2.0 x1, supports M.2 WiFi and Bluetooth Module
Video Output HDMI: support HDMI1.4 and HDMI2.0 operation
          support up to 10 bits Deep Color modes
          support up to 1080p@120Hz and 4096x2304@60Hz
          support 3-D video formats
USB USB 3.0 Host x2: USB 3.2 Gen 1 Type-A
USB-C x1: Power Only(5V)
Pin-header Debug: Debug UART x1, 3 Pin 2.54mm header, 3.3V level, 1500000bps

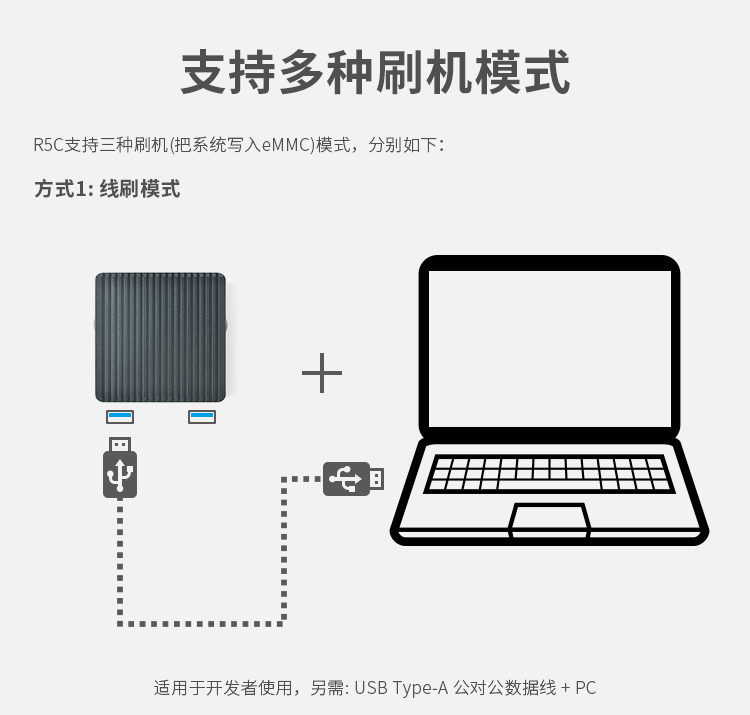

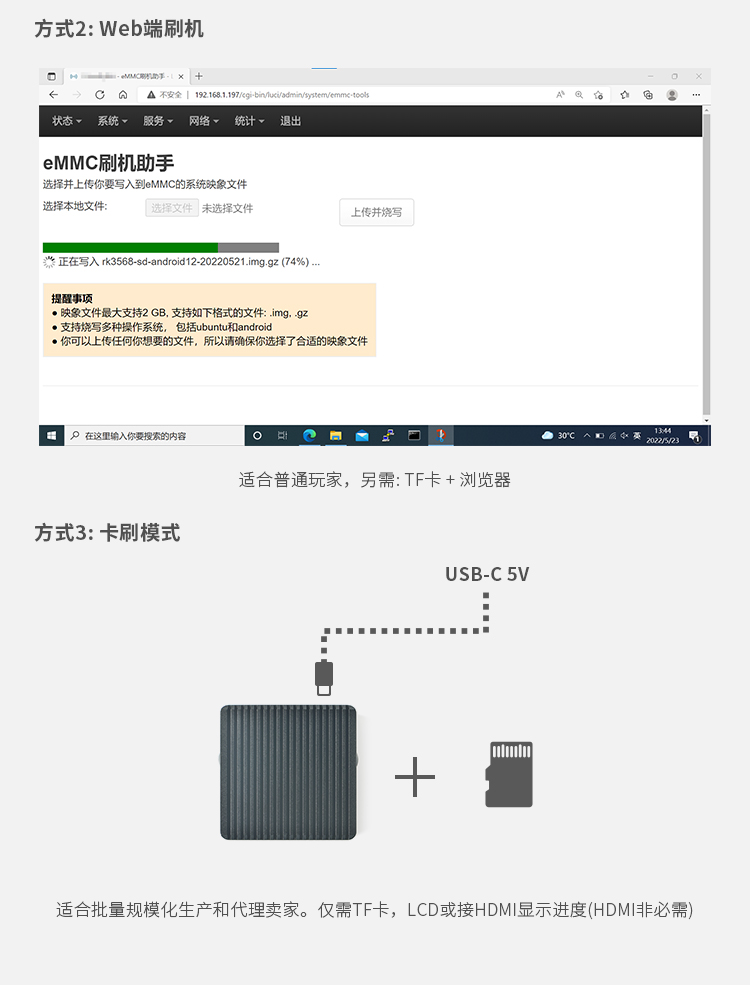

Button MASK Button x1 for eMMC update
User Button x1
LED PWR LED(Red) x1
WAN LED(Green) x1
LAN1 LED(Green) x1
Wireless LED(Green) x1
Others RTC Battery: 2 Pin 1.27/1.25mm RTC battery input connector for low power RTC IC HYM8563TS
Working Temperature: 0℃ to 70℃
Power USB-C, 5V Input

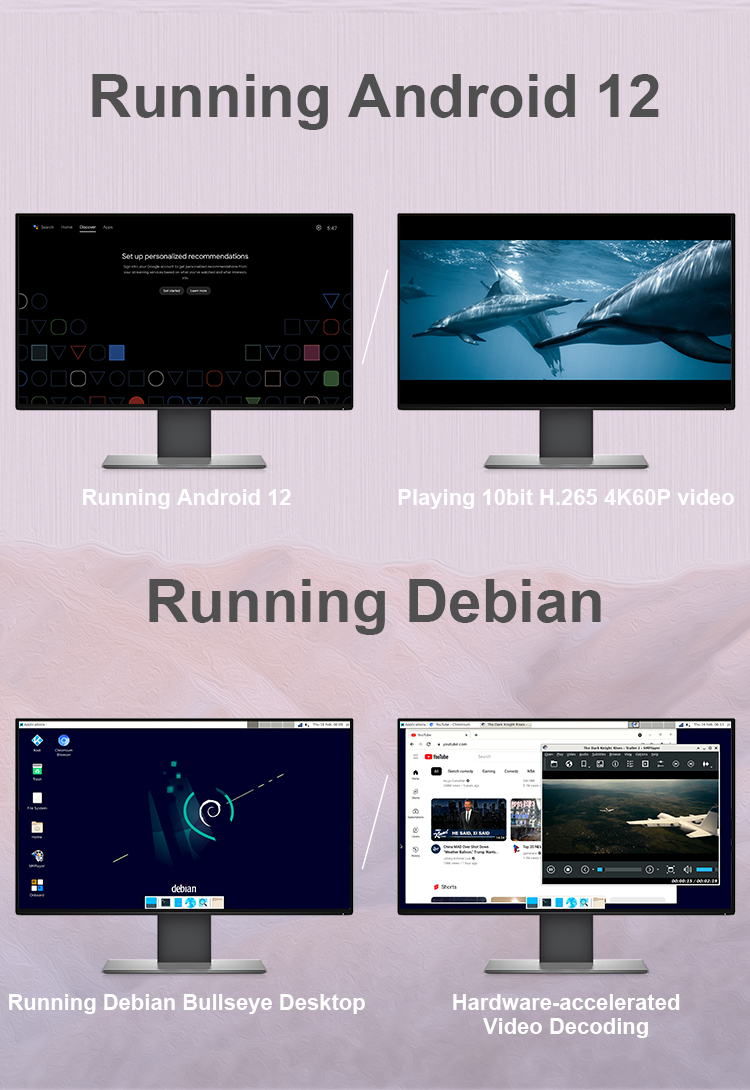

OS Support - Android 12
- FriendlyCore Lite 20.04
- Debian 10 Desktop
- Debian 11 Desktop
- Buildroot
Kernel version - Linux-5.10-LTS
- U-boot-2017.09
PCB 8 Layer

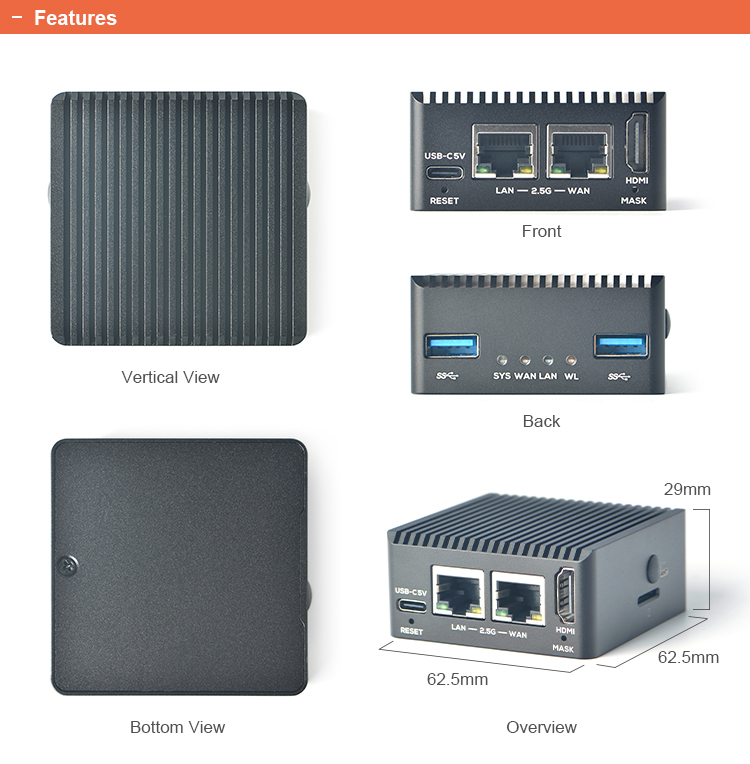

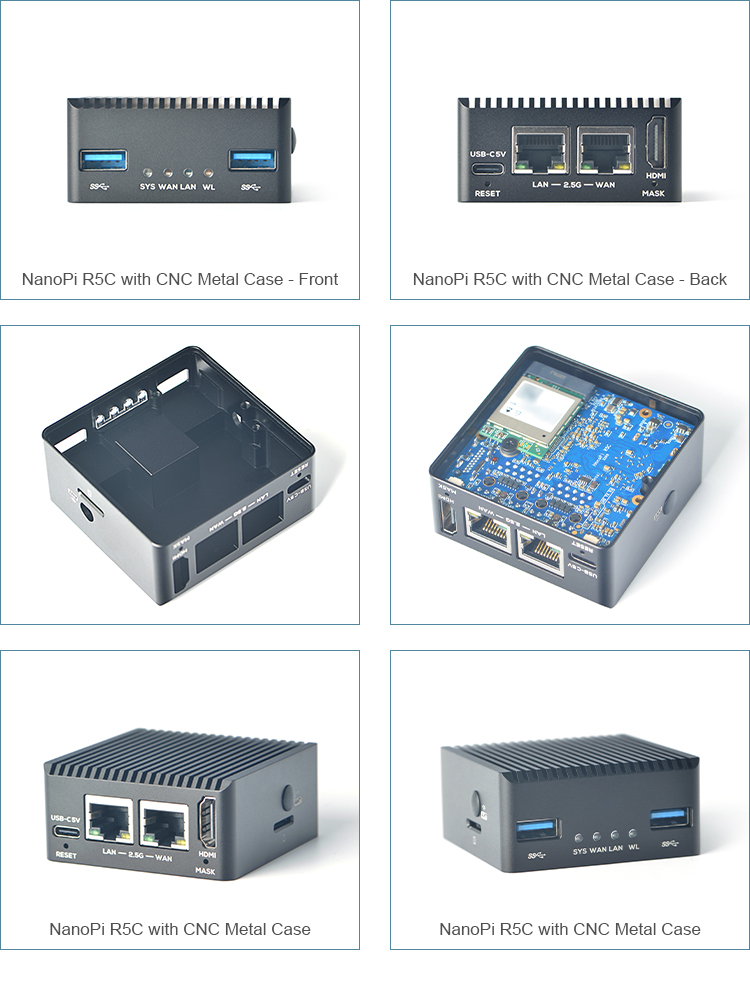

Dimension 58x58x1.6mm mm(without Case) / 62.5x62.5x29mm mm(with Case)
Weight 38g(without Case) / 149g(with Case)
