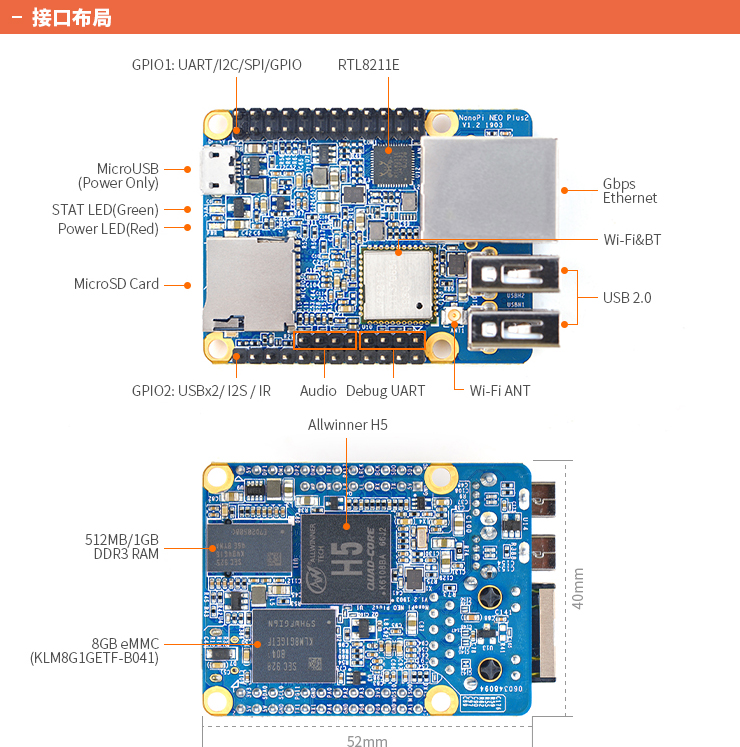

CPU Model: Allwinner H5
Number of Cores: 64-bit Quad-Core
Frequency:4* Cortex-A53 1.5GHz
Memory RAM: 512MB/1GB DDR3
Storage eMMC: 8GB
MicroSD Slot: MicroSD*1 for external storage up to 128GB
Connectivity Ethernet: Gbps Ethernet, RTL8211E-VB-CG chip
WiFi: 802.11b/g/n
Bluetooth: 4.0 dual mode
Antenna: IPX Connector*1
Audio Input/Output: 2.54mm pitch 5 pin-header
USB USB 2.0*1: USB 2.0 Host Type A
USB pin header*2
MicroUSB*1: Power input(5V/2A)
Pin-header

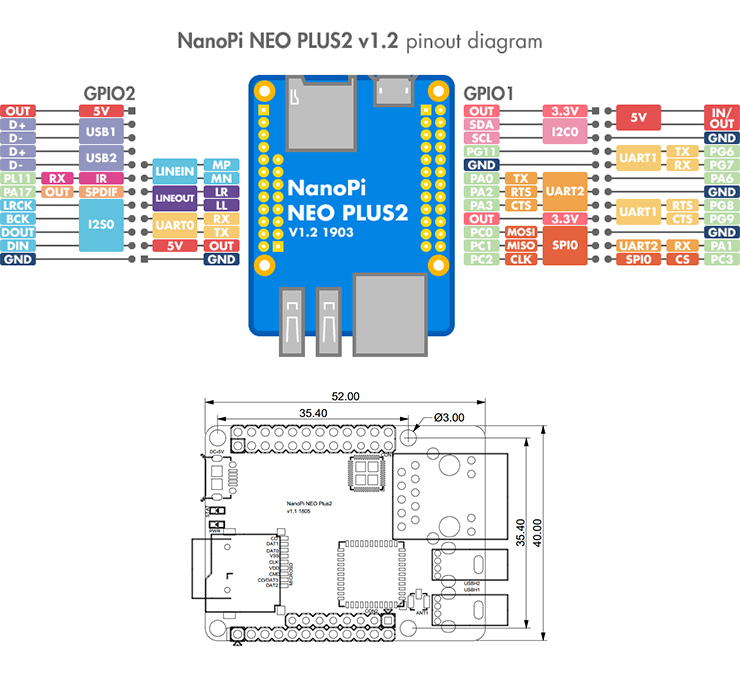

GPIO 1:
24Pin, 2.54mm pitch double-row pin-header containing UART, SPI, I2C and IO

GPIO 2:
12Pin, 2.54mm pitch pin-header containing USB, IR receiver,I2S and IO

Serial Debug Port: 2.54mm pitch 4pin-header
LED Power LED(Red)*1
STAT LED(Green)*1
Others Working Temperature: -20�� to 70��
Power DC 5V/2A

OS Support FriendlyCore(based on UbuntuCore-16.04)
Third party: Armbian, DietPi, Lakka, Kali, OpenWrt etc
Kernel version Linux-4.14-LTS
U-boot-2017.11
FriendlyCore 64-bit OS
supports FriendlyElec��s BakeBit Kit
supports FriendlyElec��s NanoHAT OLED
pre-installed FriendlyElec��s NanoHAT Motor Python Library
pre-installed WiringPi for GPIO access
pre-installed RPi.GPIO for GPIO access
npi-config: system configuration utility for setting passwords, language, timezone, hostname,

SSH and auto-login

networkmanager: a network tility to manage networking
auto-login with user account "pi" with access to npi-config
supports Gbps Ethernet
supports WiFi and Bluetooth
supports FriendlyElec's FA-CAM202 USB camera
supports audio recording and playing
Debian for NAS Dock supports FriendlyElec��s NAS Dock
pre-installed OpenMediaVault

PCB Six Layer
Dimension 40*52mm
Weight 22.20g
